SS317LStainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate

SS317LStainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate
SS317LStainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate SS317LStainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate SS317LStainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate

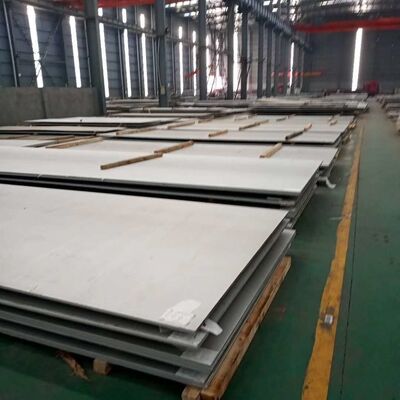

Grande immagine :  SS317LStainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate

Dettagli:
Luogo di origine: Cina
Marca: TSING SHAN
Certificazione: ISO SGS MTC
Numero di modello: 1.4438 X2CrNiMo18-16-4 317L
Termini di pagamento e spedizione:
Quantità di ordine minimo: 10 kg
Prezzo: 2.85-5.55 USD/KG
Imballaggi particolari: Imballaggio per l'esportazione
Tempi di consegna: 7 giorni
Termini di pagamento: Western Union, T/T, L/C
Capacità di alimentazione: 50000KG
Contatto

SS317LStainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate

descrizione
Condizione: Arrotolato a freddo a caldo Mulino: TISCO, ZPSS, ecc.
Applicazione: Placca di acciaio ad alta resistenza a bassa lega Superficie: 2B, NO.1, BA, 8K.etc
Bordo: Bordo del mulino/bordo di taglio in acciaio inossidabile Qualità: No. 1
Densità: 70,98 g/cm3 Caratteristica: Resistenza alla corrosione
Tecnologia di elaborazione: Arrotolato a freddo Applicazioni: Edilizia, automobilistico, industria chimica, trasformazione alimentare
Termini commerciali: CATENA DELL'OROLOGIO, CNF, CIF Grado: 1.4438 X2CrNiMo18-16-4 317L
Colore: lotti di colore disponibili

SS 317L Stainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate



Material
200 300 400 Series stainless steel
Grade
201 202 301 303 304 304L 309 309S 310 310S 316 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
Standard
AISI ASTM JIS DIN EN BS
Tech
cold rolled / hot rolled
Thickness
Hot rolled: 3mm-16mm 16-150mm
Normal: 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0
As per customer's request: 16-150mm
Cold rolled: 0.3-6mm
Normal:0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0
As per customer's request: 4.0/5.0/6.0
Width&Length
1000mm-6000mm, or as per customer's request
Hot rolled: 1250*3000mm (4.1*10ft) 1500*3000mm (5*10ft)
1250*6000mm (4.1*19.6ft) 1500*6000mm (5*19.6ft)
1800*6000mm (5.9*19.6ft) 2000*6000mm(6.5*19.6ft)
Cold rolled: 1000*2000mm (3.2*6.5ft) 1219*2438mm (4*8ft)
1500*3000mm (5*10ft)
1800 available 2000 available
Place of Origin
Jiangsu China
Processing Service
Bending, Welding, Recoiling, Punching, Cutting
Tolerance
±1%
Surface Treatment
N0.1,2B,BA,6K, 8K, 12k, N0.4, HL, Mirrored,checkered etc
Payment
T/T terms, 30% pre-payment, 70% balance see B/L copy
Delivery Time
5-15 days for ordinary orders (standard orders <=50 ton); specified orders needs final confirmation as per customer's request





317l Stainless Steel Sheet & Plate (UNS S31703,1.4438)

317L stainless steel sheet and plate are high-performance materials designed to meet demanding industrial applications. With enhanced corrosion resistance, mechanical strength, and durability, they are a preferred choice across various industries such as chemical processing, petrochemical, and marine environments.



Key Features of 317L Stainless Steel Sheet & Plates

  1. Corrosion Resistance: Superior resistance to chemical and chloride-induced corrosion due to high molybdenum content.
  2. Low Carbon Content: Enhanced weldability and reduced risk of sensitization.
  3. High Strength: Excellent mechanical strength and toughness at various temperatures.
  4. Heat resistance: Ensures stability and performance in high-temperature situations.
  5. Fabrication-Friendly: Easy to machine, form, and weld.
  6. Durability: Long-lasting with resistance to pitting, crevice corrosion, and stress cracking.
  7. Applications: Ideal for chemical processing, marine environments, and pharmaceutical industries.

Technical Specifications:

  • UNS Number: S31703
  • DIN/EN Designation: 1.4438
  • Standards Compliance: ASTM A240/A240M

Application

  • Automotive
  • Chemical and Pharmaceutical
  • Fertilizer
  • Food Processing and Handling
  • Manufacturing
  • Mining
  • Oil & Gas
  • Phosphate Mining

Standard

  • ASTM A240 / A240M
  • ASTM A276 / A276M
  • ASTM A312 / A312M
  • ISO 15510
  • EN 10088-2
  • IN 10204
  • HE G4304
  • HE G4305
  • ASME SA240 / SA240M
  • ASME SA312 / SA312M

Corrosion Resistance

  • High Molybdenum Content: The increased molybdenum content in 317L significantly enhances its resistance to chlorides and acidic environments. This makes it ideal for applications in coastal areas and marine environments where seawater exposure is a concern.
  • Superior Pitting and Crevice Corrosion Resistance: The alloy’s formulation helps prevent pitting and crevice corrosion, which are common in environments with stagnant or localized corrosive solutions.
  • Resistance to Sulfuric Acid: 317L stainless steel offers impressive resistance to sulfuric acid, which is beneficial for industries dealing with acidic by-products or processes.
  • Tolerance to High Temperatures: The alloy maintains its corrosion resistance even at elevated temperatures, ensuring durability and longevity in high-heat applications.

317l Chemical Composition

Element Composition (%)
Iron (Fe) Balance
Chromium (Cr) 18.0 – 20.0
Nickel (Ni) 11.0 – 14.0
Molybdenum (Mo) 3.0 – 4.0
Carbon (C) ≤ 0.030
Manganese (Mn) ≤ 2.0
Silicon (Si) ≤ 1.0
Phosphorus (P) ≤ 0.045
Sulfur (S) ≤ 0.030
Nitrogen (N) ≤ 0.10

317l Physical Properties

Property Value
Density 8.03 g/cm³
Melting Point 1375 – 1400°C (2500 – 2550°F)
Thermal Conductivity 16.3 W/m·K
Specific Heat Capacity 500 J/kg·K
Modulus of Elasticity 193 – 200 GPa
Poisson’s Ratio 0.27 – 0.30
Hardness (Rockwell B) ~85 HRB
Tensile Strength 515 – 690 MPa (75 – 100 ksi)
Yield Strength 205 MPa (30 ksi)
Elongation ~40% (in 50 mm length)

317l Mechanical Properties

Property Value
Tensile Strength 515 – 690 MPa (75 – 100 ksi)
Yield Strength 205 MPa (30 ksi)
Elongation ~40% (in 50 mm length)
Reduction of Area ~50%
Hardness (Rockwell B) ~85 HRB
Modulus of Elasticity 193 – 200 GPa (28 – 29 × 10^6 psi)

Fabrication Data

Welding

  • Techniques: Suitable for most standard welding methods (TIG, MIG, resistance welding).
  • Filler Material: Use 317L or 316L grade filler rods for best results.
  • Pre/Post Weld Treatment: Preheating generally not required; post-weld annealing is optional for critical applications.



Machining

  • Tools: Use carbide-tipped tools for efficient machining.
  • Speed & Feed: Moderate speeds with sufficient cooling and lubrication to prevent work hardening.
  • Recommendations: Avoid interruptions during machining to minimize surface hardening.



Forming

  • Techniques: Can be formed using conventional methods, such as bending, pressing, and drawing.
  • Considerations: High strength may require heavier equipment; ensure annealing after severe forming.



Annealing

  • Process: Heat to 1010-1120°C (1850-2048°F) and then rapidly freeze.
  • Purpose: Restores flexibility and relieves stress after fabrication.



Cutting

  • Methods: Plasma cutting, laser cutting, or shearing are recommended.
  • Tool Maintenance: Regular sharpening of tools reduces work hardening.



Surface Treatment

  • Pickling & Passivation: Improves surface corrosion resistance after fabrication.

 SS317LStainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate 0

SS317LStainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate 1SS317LStainless Steel Plate 1.4438 X2CrNiMo18-16-4 4*1500*6000mm Hot Rolled 317L Plate 2





FAQ

Q1 :What can be provided ?
1. Sample can be ordered.
2. We have full stock, and products can be delivered within 14 days. Multiple styles for your choices.3. OEM and ODM order are accepted. Any kind of logo printing or design are available.
4. We are strong at Good Quality /Factory Price / Quick Response / Reliable Service.
5. All of our products are produced by professions and we have our high-work-effect foreign trade team, you can totally trust us.Q2:How do you guarantee your quality?



1. We have 6 ex-factory inspection procedures.
2. For each batch of products, 22 people participate in the quality inspection during the whole process of material, size, surface treatment, packaging, etc.
3. Ensure that the factory products are 100% qualified.

Q3: How long does your delivery time take?1. Spot delivery can be arranged immediately.
2. The fastest delivery time can be communicated according to your order details.

Q4: What are your advantages?1. Competitive price and quality from our own factory
2. Approved by ISO9001, CE, SGS every year
3. Best service within 24 hours reply
4. Flexible payment with T/T,L/C and etc.
5. Smooth production ability(5000 tons/month)
6. Quick delivery and standard exporting package

Q5:Has the product got quality inspection before loading?Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint the third parties to inspect the products before loading.
