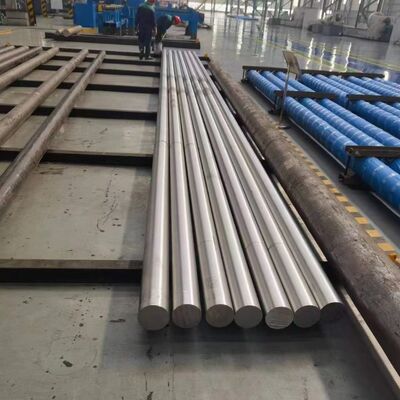

ASTM A479 XM-19 Forged Rod UNS S20910 Nitronic50 Stainless Steel Solid Bar
| Product Name |
S20910 XM-19 Alloy Round Bar |
| Type |
Cold drawn, Hot rolled, Forged |
| Shape |
Round |
| Standard |
GB,AISI,ASTM,DIN,EN,JIS |
| Grade |
Stainless steel 304 / 304L / 310S / 316L / 317L / 904L / 2205 / 2507 / 32760 / 253MA / 254SMo / S31803 / S32750 / S32205 etc |
| Monel 400 / Monel K-500 |
| Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750 |
| Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926 |
| Nimonic 50-60 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic 263 / Nimonic L-605 |
| Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22 Hastelloy C-4 / Hastelloy C-200 / Hastelloy G-35 / Hastelloy X / Hastelloy N |
| Austenitic stainless steel 904L / XM-19 / 316Ti / 316LN / 371L / 310S / 253MA |
| DP steel 254SMo / F50 / 2205 / 2507 / F55 / F60 / F61 / F65 |
| PH stainless steel 15-5PH / 17-4PH / 17-7PH |
| Diameter |
6mm - 600mm |
| Finish |
Bright, Pickling, Black, Polished |
| Packing |
Wooden box, Waterproof polybag |
| Inspection |
TUV,SGS,BV,ABS,LR and so on |
| Application |
Construction, shipbuilding, Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc. |
| Processing Service |
Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining Deformation processing : Bending / Cutting / Rolling / Stamping Forged |
| Delivery Time |
7-40 days |
| Trade Term |
FOB CIF CFR CIP DAP DDP EXW |
| Payment |
T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer requirements payments for offline orders. |
| Transportation |
By air, by sea, by train, by truck |
| Sample |
Free |
| Warranty |
Trade assurance after sales service |
| INCONEL SERIES: |
| Item |
600 |
601 |
617 |
625 |
690 |
718 |
X750 |
825 |
| C |
≤0.15 |
≤0.1 |
0.05-0.15 |
≤0.1 |
≤0.05 |
≤0.08 |
≤0.08 |
≤0.05 |
| Mn |
≤1 |
≤1.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.35 |
≤1 |
≤1 |
| Fe |
6-10 |
rest |
≤3 |
≤5.0 |
7-11 |
rest |
5-9 |
≥22 |
| P |
≤0.015 |
≤0.02 |
≤0.015 |
≤0.015 |
-- |
-- |
-- |
-- |
| S |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.01 |
≤0.01 |
≤0.03 |
| Si |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.35 |
≤0.5 |
≤0.5 |
| Cu |
≤0.5 |
≤1 |
-- |
-- |
≤0.5 |
≤0.3 |
≤0.5 |
1.5-3 |
| Ni |
≥72 |
58-63 |
≥44.5 |
Bal |
≥58 |
50-55 |
≥70 |
38-46 |
| Co |
-- |
-- |
10-15 |
≤1.0 |
-- |
≤1 |
≤1 |
-- |
| Al |
-- |
1-1.7 |
0.8-1.5 |
≤0.4 |
-- |
0.2-0.8 |
0.4-1 |
≤0.2 |
| Ti |
-- |
-- |
≤0.6 |
≤0.4 |
-- |
-- |
2.25-2.75 |
0.6-1.2 |
| Cr |
14-17 |
21-25 |
20-24 |
20-23 |
27-31 |
17-21 |
14-17 |
19.5-23.5 |
| Nb+Ta |
-- |
-- |
-- |
3.15-4.15 |
-- |
4.75-5.5 |
0.7-1.2 |
-- |
| Mo |
-- |
-- |
8-10 |
8-10 |
-- |
2.8-3.3 |
-- |
2.5-3.5 |
| B |
-- |
-- |
≤0.006 |
-- |
-- |
-- |
-- |
|
|
Forging/hot rolled/ extrusion of steel: round bar/ square bar/ plate/ coil/ wire/ forging
Forging: Shafts with flanks/pipes/tubes/slugs/bar/donuts/ring/cubes/other shapes
pipe : OD: φ6-219 mm, with wall thickness ranging from 1-35 mm.
Finished goods condition: hot forged/hot rolled + annealing/normalizing + tempering/quenching +tempering/any conditions based on the customer's requirement
XM-19/S20910 steel round bar
Surface conditions: scaled (hot working finish)/ground/rough machining/fine machining/based on the customer's requirement
Furnaces for metallurgical processing: electrode arc + LF/VD/VOD/ESR/Vacuum consumable electrode.
Ultrasonic inspection: 100% ultrasonic inspection for any inperfections or based on your requirement
XM-19/S20910 steel round bar
All grades steel bar, steel plate, steel sheet, steel tube, steel strip, steel wire ETC.
XM-19/S20910 steel round bar
XM-19 Stainless Steel, a highly fabricable, highly weldable, nitrogen strengthened, austenitic stainless steel, provides twice the yield strength of stainless steel type 316 and a resistance to corrosion equivalent to type 316. Even after extreme forming, XM-19 Stainless Steel stays non-magnetic. Due to all these advantages, it is often used in boat shafting, marine hardware, pumps, valves, and fasteners. The machinability of XM-19 Stainless Steel is comparable to that of alloy 316 or 317. It is formable, but there will be more springback with XM-19 than with other austenitic stainless steels. To achieve maximum hardness, use cold working. Because of XM-19's high tendency toward work hardening, process anneal the work piece after forming to relieve stress.
XM-19/S20910 Steel round bar
XM-19/S20910 steel flat bar
XM-19/S20910 steel sheet
XM-19/S20910 steel plate

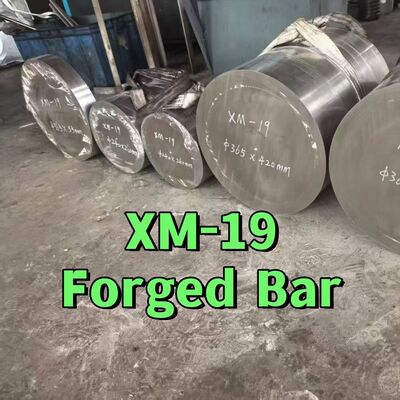

XM-19/S20910 steel forging
XM-19/S20910 chemical composition
mechanical properties
| Carbon |
|
0.06 max |
| Chromium |
|
20.5 - 23.5 |
| Iron |
|
Balance |
| Manganese |
|
4 - 6 |
| Molybdenum |
|
1.5 - 3 |
| Nickel |
|
11.5 - 13.5 |
| Niobium |
|
0.1 - 0.3 |
| Nitrogen |
|
0.2 - 0.4 |
| Phosphorus |
|
0.04 max |
| Silicon |
|
1 max |
| Sulphur |
|
0.03 max |
| Vanadium |
|
0.1 - 0.3 |
Q1:What product information must I provide before making a purchase?Please provide the grade, width, thickness, and surface treatment requirements, as well as the quantities you require.
Q2:What shipping ports are there?We normally ship from Shanghai, Tianjin, Qingdao, and Ningbo ports
Q3:What are your payment terms?30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
Q4:What about product pricing information?Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?Yes, we can produce according to your specifications and drawings.
Q7:Can you assist me in importing steel products for the first time?Yes, we have shipping agent who will arrange the shipment with you.
Q8. What is your delivery time?Within 7 working days after receiving your balance payment.
