AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part
AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

Grande immagine :  AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

Dettagli:
Luogo di origine: Cina
Marca: BAO STEEL
Certificazione: SGS
Numero di modello: 15-5PH
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 tonnellata
Prezzo: 2350-4580 USD/Ton
Imballaggi particolari: Imballaggio per l'esportazione
Tempi di consegna: 7 giorni
Capacità di alimentazione: 500 tonnellate

AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

descrizione
OD: 8-200mm Lunghezza: 1000-8000mm
Superficie: Nero e luminoso Resistenza alla corrosione: Alto
Nome prodotto: Barra tonda in acciaio inossidabile Imballaggio: Imballaggio per l'esportazione
Forma: girare Trattamento termico: Ricotto, Spento
Gamma di diametri: 3mm - 200mm Servizio dell'OEM: Accettare
Finitura superficiale: Lucido, finitura fresata, spazzolato Finitura superficiale: 2B, lucidato
Porto di carico: Porto di Ningbo, porto di Tianjin. Nichel: 8%
Colore: Colore naturale, bianco brillante Lunghezza: 1 m a 6m
Lavorabilità: Bene Materiale: Acciaio inossidabile
Evidenziare:

AMS 5659 stainless steel round bar

,

15-5PH stainless steel valve part

,

S15500 martensitic steel oil part

AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part


15-5PH / EN 1.4545 (X5CrNiCu15-5, UNS S15500, XM-12) Precipitation Hardening Stainless Steel
15-5PH is a premium martensitic precipitation hardening stainless steel, improved version of 17-4PH, specified by German EN standard 1.4545 and American ASTM A182, A240, AMS 5659.
With balanced 15% chromium, 5% nickel, copper and niobium alloying elements, this grade eliminates almost all delta ferrite via vacuum remelting, delivering outstanding transverse toughness, uniform mechanical properties and much better resistance to stress corrosion cracking compared with 17-4PH.
It can be solution annealed at 1040–1065°C for easy machining, then age-hardened at low temperature with minimal distortion to reach different strength levels: H900 for maximum hardness, H1025 for balanced strength & ductility, H1150 for superior toughness & sour corrosion performance.
15-5PH features good weldability, excellent polishability, cavitation erosion resistance and corrosion performance close to 304 stainless steel.
Widely used in oil & gas valve stems & bodies, aerospace hydraulic components, food & medical machinery, hydro power turbine parts, high-strength fasteners and plastic injection molds.
Available products: round bar, flat bar, plate, seamless pipe, forgings, flanges and wire, supplied with DIN EN 10204 3.1 / 3.2 mill test certificates for European Union market.


Precipitation Hardening Stainless Steel 15-5PH steel bars Similar Grade
W.Nr AISI UNS ASTM
1.4545 15-5PH S15500 S15500



Precipitation Hardening Stainless Steel 15-5PH steel bars Chemical composition
15-5PH C Si Mn P S
0.07max 1.0max 1.0max 0.030max 0.015max
Cr Cu Cb Ni Mo
14.0-15.5 2.5-4.5 0.45max 3.5-4.5 0.5max



Precipitation Hardening Stainless Steel 15-5PH Information
Alloy 15-5 is a precipitation hardening alloy exhibiting high strength and hardness with moderate corrosion resistance. Alloy 15-5 is a variant of the older 17-4 and 15-5 was designed to have greater toughness than S17400, especially in the through-thickness (short transverse) direction. Alloy 15-5 is used in applications that require high transverse strength and toughness such as engine parts, aircraft components, nuclear reactor components etc.


Precipitation Hardening Stainless Steel 15-5PH Typical Physical Property
Material Condition Ultimate Tensile Strength (ksi) 0.2 % Yield Strength (ksi) Elongation % in 2D % Reduction of Area Rockwell C Hardness
Alloy 15-5 PH Cond A - - - - 363 HB max
Bar AMS 5659
Alloy 15-5 PH H900 190 170 10 35 388-444
Bar AMS 5659
Alloy 15-5 PH H925 170 155 10 38 375-429
Bar AMS 5659
Alloy 15-5 PH H1025 155 145 12 45 331-401
Bar AMS 5659
Alloy 15-5 PH H1075 145 125 13 45 311-375
Bar AMS 5659
Alloy 15-5 PH H1100 140 115 14 45 302-363
Bar AMS 5659
Alloy 15-5 PH H1150 135 105 16 50 277-352
Bar AMS 5659

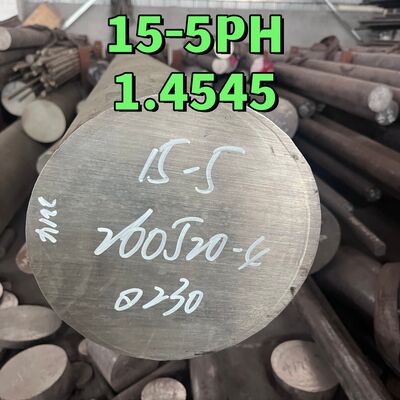

Produce Photo

AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

After Processing And Before Packing

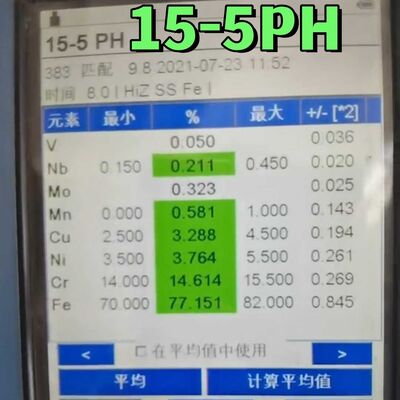

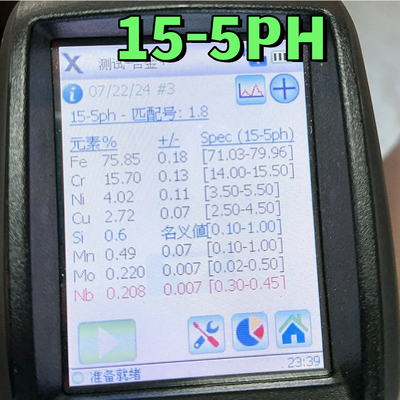

1. Chemical Compositon Inspection

2.Nondestructive Inspection

3.Metallurgical Microscope Inspection.

4.Physical Property Inspection

5.Hardness Inspection

6.Heterogeinity Of Carbides
